Хангзхоу Оцеан Индустри Цо., Лтд. је један од водећих произвођача и добављача ктл 3в-5в-8в в-ременица у Кини. Добродошли у велепродајне трајне индустријске ланце и делове за пренос снаге произведене у Кини овде из наше фабрике. Сви прилагођени производи су високог квалитета и конкурентне цене.

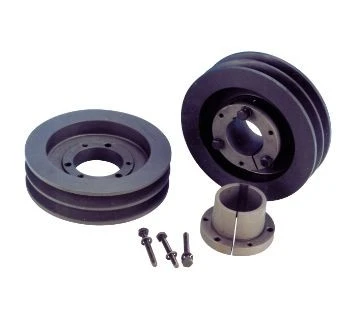

НСПТ 3В-5В-8В серија ременица са максималним спољним пречником од 50" и максимално 12 жљебова може бити погодна за чауре серије БТЛ, КТЛ и СТЛ.
НСПТ је способан да дизајнира и произведе нестандардне -ременице на основу потреба купаца.
Параметар
Асортиман производа:
3V-1
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 1-3В220-ЈА 1-3В235-ЈА 1-3В250-ЈА 1-3В265-ЈА 1-3В280-ЈА |
2.20 2.35 2.50 2.65 2.80 |
2.15 2.30 2.45 2.60 2.75 |
11/4 11/4 11/4 11/4 11/4 |
ЈА ЈА ЈА ЈА ЈА |
E1 E1 E1 C1 C1 |
- - - - - |
9/16 9/16 9/16 3/8 3/8 |
7/16 7/16 7/16 1/8 1/8 |
11/16 11/16 11/16 11/16 11/16 |
15/16 15/16 15/16 - - |
0.7 0.8 0.9 0.9 1.0 |
| 1-3В300-ЈА 1-3В315-ЈА 1-3В335-ЈА 1-3В365-СХ 1-3В412-СХ |
3.00 3.15 3.35 3.65 4.12 |
2.95 3.10 3.30 3.60 4.07 |
11/4 11/4 11/4 111/16 111/16 |
ЈА ЈА ЈА СХ СХ |
C1 C1 C1 D1 D1 |
- - - - - |
3/8 3/8 3/8 9/16 9/16 |
1/8 1/8 1/8 - - |
11/16 11/16 11/16 15/16 15/16 |
- - - 1/16 1/16 |
1.0 1.1 1.3 1.7 2.1 |
| 1-3Ц450-СХ 1-3В475-СХ 1-3В500-СХ 1-3В530-СХ 1-3В560-СХ |
4.50 4.75 5.00 5.30 5.60 |
4.45 4.70 4.95 5.25 5.55 |
111/16 111/16 111/16 111/16 111/16 |
СХ СХ СХ СХ СХ |
D2 D2 D2 D2 D2 |
3 3 3 3 3 |
9/16 9/16 9/16 9/16 9/16 |
- - - - - |
15/16 15/16 15/16 15/16 15/16 |
1/16 1/16 1/16 1/16 1/16 |
2.5 2.8 3.2 3.2 3.5 |
| 1-3В600-СХ 1-3В650-СХ 1-3В690-СХ 1-3В800-СДС 1-3В1060-СДС |
6.00 6.50 6.90 8.00 10.60 |
5.95 6.45 6.85 7.95 10.55 |
111/16 111/16 111/16 2 2 |
СХ СХ СХ СДС СДС |
D2 D3 D3 C3 C3 |
3 3 3 31/2 31/2 |
9/16 9/16 9/16 5/8 5/8 |
- - - - - |
15/16 15/16 15/16 13/8 13/8 |
1/16 1/16 1/16 - - |
3.9 4.5 5.5 8.0 13.5 |
| 1-3В1400-СК 1-3В1900-СК |
14.00 19.00 |
13.95 18.95 |
25/8 25/8 |
СК СК |
C3 C3 |
43/8 43/8 |
11/16 11/16 |
- - |
115/16 115/16 |
- - |
17.0 19.5 |

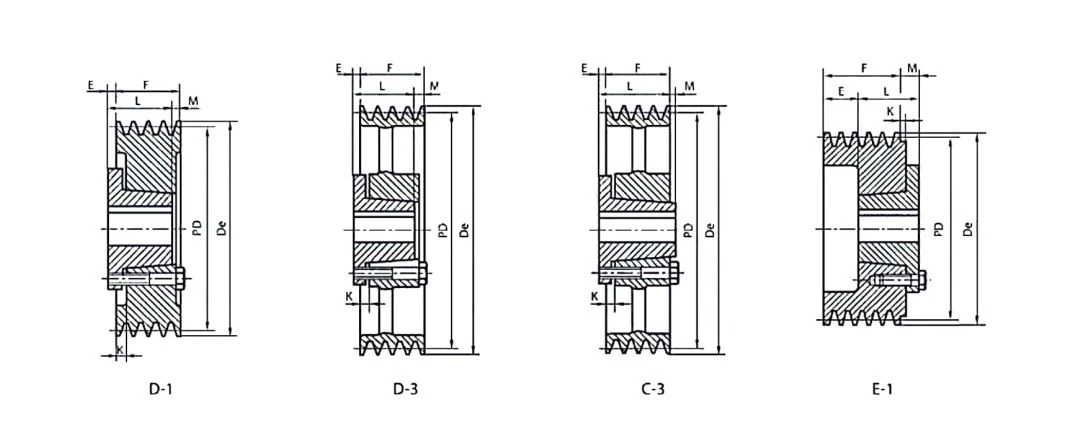

3V-2
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 2-3В220-ЈА 2-3В235-ЈА 2-3В250-ЈА 2-3В265-ЈА 2-3В280-ЈА |
2.20 2.35 2.50 2.65 2.80 |
2.15 2.30 2.45 2.60 2.75 |
11/4 11/4 11/4 11/4 11/4 |
ЈА ЈА ЈА ЈА ЈА |
E1 E1 E1 D1 D1 |
- - - - - |
31/32 31/32 31/32 3/8 3/8 |
7/16 7/16 7/16 1/8 1/8 |
11/16 11/16 11/16 11/16 11/16 |
15/16 15/16 15/16 13/32 13/32 |
0.9 1.0 1.2 1.3 1.4 |
| 2-3В300-ЈА 2-3В315-ЈА 2-3В335-СХ 2-3В365-СХ 2-3В412-СХ |
3.00 3.15 3.35 3.65 4.12 |
2.95 3.10 3.30 3.60 4.07 |
11/4 11/4 111/16 111/16 111/16 |
ЈА ЈА СХ СХ СХ |
D1 D1 D1 D1 D1 |
- - - - - |
3/8 3/8 1/4 1/4 1/4 |
1/8 1/8 1/4 1/4 1/4 |
11/16 11/16 15/16 15/16 15/16 |
13/32 13/32 1/32 1/32 1/32 |
1.6 1.8 2.0 2.4 2.7 |
| 2-3Ц450-СХ 2-3В475-СХ 2-3В500-СХ 2-3В530-СХ 2-3В560-СХ |
4.50 4.75 5.00 5.30 5.60 |
4.45 4.70 4.95 5.25 5.55 |
111/16 111/16 111/16 111/16 111/16 |
СХ СХ СХ СХ СХ |
D1 D1 D1 D1 D1 |
- - - - - |
1/4 1/4 1/4 1/4 1/4 |
1/4 1/4 1/4 1/4 1/4 |
15/16 15/16 15/16 15/16 15/16 |
1/32 1/32 1/32 1/32 1/32 |
2.9 3.1 3.6 4.5 5.0 |
| 2-3В600-СХ 2-3В650-СДС 2-3В690-СДС 2-3В800-СДС 2-3В1060-СК |
6.00 6.50 6.90 8.00 10.60 |
5.95 6.45 6.85 7.95 10.55 |
111/16 2 2 2 25/8 |
СХ СДС СДС СДС СК |
D1 D3 D3 D3 C3 |
- 31/2 31/2 31/2 43/8 |
1/4 5/16 5/16 5/16 7/16 |
1/4 5/16 5/16 5/16 1/4 |
15/16 13/8 13/8 13/8 115/16 |
1/32 1/32 1/32 1/32 13/32 |
5.5 5.8 6.0 7.0 10 |
| 2-3В1400-СК 2-3В1900-СК 2-3В2500-СФ |
14.00 19.00 25.00 |
13.95 18.95 24.95 |
25/8 25/8 215/16 |
СК СК СФ |
C3 C3 C3 |
43/8 43/8 5 |
7/16 7/16 7/16 |
1/4 1/4 1/4 |
115/16 115/16 21/16 |
13/32 13/32 17/32 |
16 25 28 |
3V-3
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 3-3В250-ЈА 3-3В265-ЈА 3-3В280-ЈА 3-3В300-ЈА 3-3В315-СХ |
2.50 2.65 2.80 3.00 3.15 |
2.45 2.60 2.75 2.95 3.10 |
11/4 11/4 11/4 111/16 111/16 |
ЈА ЈА ЈА ЈА СХ |
E1 D1 D1 E1 E1 |
23/8 - - - 3 |
13/8 3/8 3/8 11/16 11/16 |
7/16 1/8 1/8 - 5/16 |
11/16 11/16 11/16 115/16 15/16 |
15/16 13/16 13/16 9/16 7/8 |
1.6 1.8 2.0 2.2 2.5 |
| 3-3В335-СХ 3-3В365-СХ 3-3В412-СХ 3-3Ц450-СДС 3-3В475-СДС |
3.35 3.65 4.12 4.50 4.75 |
3.30 3.60 4.07 4.45 4.70 |
111/16 111/16 111/16 2 2 |
СХ СХ СХ СДС СДС |
D1 D1 A1 A1 A1 |
- - - - - |
7/16 7/16 1/8 1/16 1/16 |
1/8 1/8 11/16 11/16 11/16 |
15/16 15/16 15/16 13/8 13/8 |
5/8 5/8 1/16 1/16 1/16 |
2.8 3.0 3.3 3.5 3.7 |
| 3-3В500-СДС 3-3В530-СДС 3-3В560-СДС 3-3В600-СДС 3-3В650-СДС |
5.00 5.30 5.60 6.00 6.50 |
4.95 5.25 5.55 5.95 6.45 |
2 2 2 2 2 |
СДС СДС СДС СДС СДС |
A1 A1 A1 A1 A3 |
- - - - 31/2 |
1/16 1/16 1/16 1/16 1/16 |
11/16 11/16 11/16 11/16 11/16 |
13/8 13/8 13/8 13/8 13/8 |
1/16 1/16 1/16 1/16 1/16 |
4.0 4.3 4.9 5.9 6.3 |
| 3-3В690-СДС 3-3В800-СК 3-3В1060-СК 3-3В1400-СК 3-3В1900-СФ |
6.90 8.00 10.60 14.00 19.00 |
6.85 7.95 10.55 13.95 18.95 |
2 25/8 25/8 25/8 215/16 |
СДС СК СК СК СФ |
A3 C2 C3 C3 C3 |
31/2 43/8 43/8 43/8 5 |
1/16 7/16 7/16 7/16 7/16 |
11/16 1/4 1/4 1/4 1/4 |
13/8 115/16 115/16 115/16 21/16 |
1/16 - - - 1/8 |
6.8 10.8 12.0 20.0 33.0 |
| 3-3В2500-СФ 3-3В3350-СФ |
25.00 33.50 |
24.95 33.45 |
215/16 215/16 |
СФ СФ |
C3 C3 |
5 5 |
7/16 7/16 |
1/4 1/4 |
21/16 21/16 |
1/8 1/8 |
45.0 75.0 |
3V-4
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 4-3В265-ЈА 4-3В280-ЈА 4-3В300-СХ 4-3В315-СХ 4-3В335-СХ |
2.65 2.80 3.00 3.15 3.35 |
2.60 2.75 2.95 3.10 3.30 |
11/4 11/4 111/16 111/16 111/16 |
ЈА ЈА СХ СХ СХ |
D1 D1 E1 E1 D1 |
- - - 3 - |
3/8 3/8 115/32 115/32 7/16 |
1/8 1/8 5/16 5/16 1/8 |
11/16 11/16 15/16 15/16 15/16 |
17/32 17/32 7/8 7/8 11/32 |
1.3 1.6 1.9 2.2 2.5 |
| 4-3В365- СХ 4-3В412-СХ 4-3Ц450-СДС 4-3В475-СДС 4-3В500-СДС |
3.65 4.12 4.50 4.75 5.00 |
3.60 4.07 4.45 4.70 4.95 |
111/16 111/16 2 2 2 |
СХ СХ СДС СДС СДС |
D1 A1 A1 A1 A1 |
- - - - - |
7/16 1/4 3/16 3/16 3/16 |
1/8 13/16 13/16 13/16 13/16 |
15/16 15/16 13/8 13/8 13/8 |
11/32 11/32 11/32 11/32 11/32 |
2.8 3.2 3.5 4.0 4.5 |
| 4-3В530-СДС 4-3В560-СДС 4-3В600- СК 4-3В650-СК 4-3В690-СК |
5.30 5.60 6.00 6.50 6.90 |
5.25 5.55 5.95 6.45 6.85 |
2 2 25/8 25/8 25/8 |
СДС СДС СК СК СК |
A1 A1 D1 D2 D2 |
- - - - - |
3/16 3/16 1/16 1/16 1/16 |
13/16 13/16 5/8 5/8 5/8 |
13/8 13/8 115/16 115/16 115/16 |
11/32 11/32 1/32 1/32 1/32 |
5.0 5.7 7.5 8.0 10 |
| 4-3В800-СК 4-3В1060-СК 4-3В1400-СК 4-3В1900-СФ 4-3В2500-СФ |
8.00 10.60 14.00 19.00 25.00 |
7.95 10.55 13.95 18.95 24.95 |
25/8 25/8 25/8 215/16 215/16 |
СК СК СК СФ СФ |
D2 D3 D3 C3 C3 |
43/8 43/8 43/8 5 5 |
1/16 1/16 1/16 1/16 1/16 |
5/8 5/8 5/8 5/8 5/8 |
115/16 115/16 115/16 21/16 21/16 |
1/32 1/32 1/32 3/32 3/32 |
12 16 22 37 53 |
| 4-3V3350-E | 33.50 | 33.45 | 31/2 | E | C3 | 61/4 | 3/8 | 1/2 | 25/8 | 11/32 | 80 |
3V-5
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 5-3В475-СДС 5-3В500-СДС 5-3В530-СК 5-3В560-СК 5-3В600-СК |
4.75 5.00 5.30 5.60 6.00 |
4.70 4.95 5.25 5.55 5.95 |
2 2 25/8 25/8 25/8 |
СДС СДС СК СК СК |
A2 A2 A1 A1 A1 |
31/2 31/2 - - - |
3/16 3/16 1/4 1/4 1/4 |
13/16 13/16 15/16 15/16 15/16 |
13/8 13/8 115/16 115/16 115/16 |
3/4 3/4 1/8 1/8 1/8 |
4.5 5.3 5.8 7.0 8.3 |
| 5-3В650-СК 5-3В690-СК 5-3В800-СК 5-3В1060-СК 5-3В1400-СФ |
6.50 6.90 8.00 10.60 14.00 |
6.45 6.85 7.95 10.55 13.95 |
25/8 25/8 25/8 25/8 215/16 |
СК СК СК СК СФ |
A1 A1 A2 A3 A3 |
- - 43/8 43/8 5 |
1/4 1/4 1/4 1/4 3/16 |
15/16 15/16 15/16 15/16 7/8 |
115/16 115/16 115/16 115/16 21/16 |
1/8 1/8 1/8 1/8 1/16 |
9.0 12.0 13.0 17.0 27.0 |
| 5-3В1900-СФ 5-3В2500-СЕ 5-3V3350-E |
19.00 25.00 33.50 |
18.95 24.95 33.45 |
215/16 31/2 31/2 |
СФ E E |
A3 C3 C3 |
5 61/4 61/4 |
3/16 1/4 1/4 |
7/8 5/8 5/8 |
21/16 25/8 25/8 |
1/16 1/16 1/16 |
40.0 69.0 97.0 |

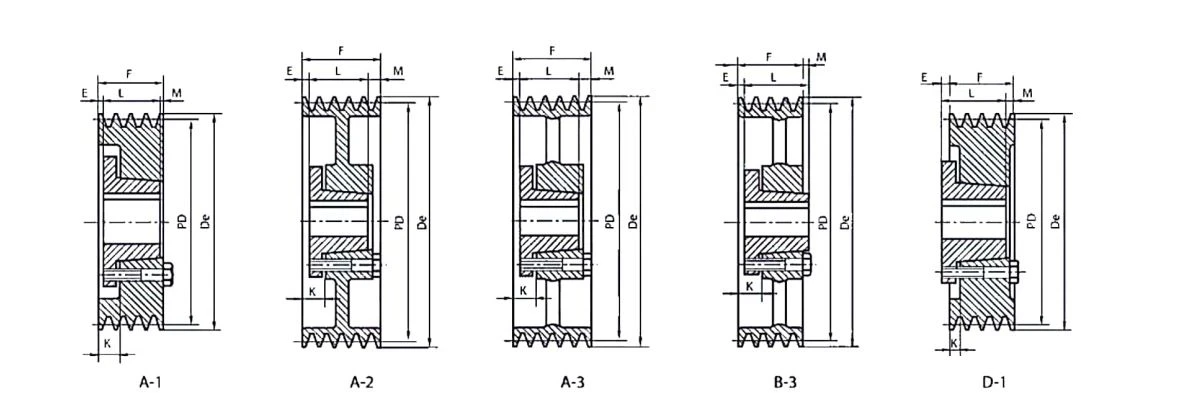

3V-6,3V-8
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 6-3В475-СК 6-3В500-СК 6-3В530-СК 6-3В560-СК 6-3В600-СК |
4.75 5.00 5.30 5.60 6.00 |
4.70 4.95 5.25 5.55 5.95 |
2 2 25/8 25/8 25/8 |
СК СК СК СК СК |
D1 D1 A1 A1 A1 |
- - - - - |
9/16 9/16 5/8 5/8 5/8 |
1/8 1/8 15/16 15/16 15/16 |
115/16 115/16 115/16 115/16 115/16 |
111/32 111/32 5/32 5/32 5/32 |
6.0 6.5 6.8 8.0 9.0 |
| 6-3В650-СК 6-3В690-СК 6-3В800-СК 6-3В1060-СФ 6-3В1400-СФ |
6.50 6.90 8.00 10.60 14.00 |
6.45 6.85 7.95 10.55 13.95 |
25/8 25/8 25/8 25/8 215/16 |
СК СК СК СФ СФ |
A2 A2 A2 A2 A3 |
43/8 43/8 43/8 5 5 |
5/8 5/8 3/16 3/16 3/16 |
15/16 15/16 7/8 7/8 7/8 |
115/16 115/16 115/16 21/16 21/16 |
5/32 5/32 19/32 15/32 15/32 |
10.0 11.5 17.0 25.0 34.0 |
| 6-3V1900-E 6-3V2500-E 6-3V3350-E |
19.00 25.00 33.50 |
18.95 24.95 33.45 |
215/16 31/2 31/2 |
E E E |
B3 B3 B3 |
61/4 61/4 61/4 |
1/8 1/8 1/8 |
1 1 1 |
25/8 25/8 25/8 |
1/32 1/32 1/32 |
45.0 75.0 98.0 |
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 8-3В475-СК 8-3В500-СК 8-3В530-СК 8-3В560-СК 8-3В600-СК |
4.75 5.00 5.30 5.60 6.00 |
4.70 4.95 5.25 5.55 5.95 |
25/8 25/8 25/8 25/8 25/8 |
СК СК СК СК СК |
D1 D1 A1 A1 A1 |
- - - - - |
9/16 9/16 5/8 5/8 5/8 |
1/8 1/8 15/16 15/16 15/16 |
115/16 115/16 115/16 115/16 115/16 |
25/32 25/32 31/32 31/32 31/32 |
6.0 6.9 7.8 9.0 10.0 |
| 8-3В650-СК 8-3В690-СК 8-3В800-СФ 8-3V1060-E 8-3V1400-E |
6.50 6.90 8.00 10.60 14.00 |
6.45 6.85 7.95 10.55 13.95 |
25/8 25/8 215/16 31/2 31/2 |
СК СК СФ СФ E |
A2 A2 A1 A2 A3 |
43/8 43/8 - 5 61/4 |
5/8 5/8 7/16 7/16 3/8 |
15/16 15/16 11/8 11/8 11/4 |
115/16 115/16 21/16 21/16 25/8 |
31/32 31/32 11/32 11/32 17/32 |
12.9 14.0 20.0 28.0 40.0 |
| 8-3V1900-E 8-3V2500-E 8-3V3350-F |
19.00 25.00 33.50 |
18.95 24.95 33.45 |
31/2 31/2 315/16 |
E E F |
A3 A3 B3 |
61/4 61/4 7 |
3/8 3/8 1/16 |
11/4 11/4 11/16 |
25/8 25/8 35/8 |
17/32 17/32 5/32 |
62.0 87.0 152 |
3V-10
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 10-3В475-СК 10-3В500-СК 10-3В530-СК 10-3В560-СК 10-3В600-СК |
4.75 5.00 5.30 5.60 6.00 |
4.70 4.95 5.25 5.55 5.95 |
25/8 25/8 25/8 25/8 25/8 |
СК СК СК СК СК |
D1 D1 A1 A1 A1 |
- - - - - |
9 /16 9/16 3/4 3/4 3/4 |
1/8 1/8 17/16 17/16 17/16 |
115/16 115/16 115/16 115/16 115/16 |
231/32 231/32 121/32 121/32 121/32 |
7.0 8.6 9.0 10 11 |
| 10-3В650-СК 10-3В690-СК 10-3В800-СФ 10-3V1060-E 10-3V1400-E |
6.50 6.90 8.00 10.60 14.00 |
6.45 6.85 7.95 10.55 13.95 |
25/8 25/8 215/16 31/2 31/2 |
СК СК СФ E E |
A2 A2 A1 A2 A3 |
43/8 43/8 - 61/4 61/4 |
3/4 3/4 13/16 3/8 3/8 |
17/16 17/16 11/2 11/4 11/4 |
115/16 115/16 21/16 25/8 25/8 |
121/32 121/32 115/32 111/32 111/32 |
14 16 22 33 43 |
| 10-3V1900-E 10-3V2500-F 10-3V3350-F |
19.00 25.00 33.50 |
18.95 24.95 33.45 |
31/2 315/16 315/16 |
E F F |
A3 A3 A3 |
61/4 7 7 |
3/8 5/16 5/16 |
11/4 15/16 15/16 |
25/8 35/8 35/8 |
111/32 13/32 13/32 |
66 98 178 |
5V-2
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 2-5В440-СХ 2-5В465-СДС 2-5В490-СДС 2-5В520-СДС 2-5В550-СДС |
4.40 4.65 4.90 5.20 5.50 |
4.30 4.55 4.80 5.10 5.40 |
111/16 2 2 2 2 |
СХ СДС СДС СДС СДС |
A1 E1 A1 A1 A1 |
- - - - - |
5/16 15/16 1/16 1/16 1/16 |
7/8 - 11/16 11/16 11/16 |
15/16 13/8 13/8 13/8 13/8 |
1/16 5/8 1/4 1/4 1/4 |
4.0 4.5 5.0 5.5 6.0 |
| 2-5В590-СДС 2-5В630-СК 2-5В670-СК 2-5В710-СК 2-5В750-СК |
5.90 6.30 6.70 7.10 7.50 |
5.80 6.20 6.60 7.00 7.40 |
2 25/8 25/8 25/8 25/8 |
СДС СК СК СК СК |
A1 C1 C1 C1 C1 |
- - - - - |
1/16 1/4 1/4 1/4 1/4 |
11/16 7/16 7/16 7/16 7/16 |
13/8 115/16 115/16 115/16 115/16 |
1/4 - - - - |
7.0 8.0 10 11 13 |
| 2-5В500-СК 2-5В850-СК 2-5В900-СК 2-5В925-СК 2-5В975-СК |
8.00 8.50 9.00 9.25 9.75 |
7.90 8.40 8.90 9.15 9.65 |
25/8 25/8 25/8 25/8 25/8 |
СК СК СК СК СК |
C1 C1 C2 C2 C3 |
- - 43/8 43/8 43/8 |
1/4 1/4 1/4 1/4 1/4 |
7/16 7/16 7/16 7/16 7/16 |
115/16 115/16 115/16 115/16 115/16 |
- - - - - |
14 15 16 16 17 |
| 2-5В1030-СК 2-5В1090-СК 2-5В1130-СК 2-5В1180-СК 2-5В1250-СФ |
10.30 10.90 11.30 11.80 12.50 |
10.20 10.80 11.20 11.70 12.40 |
25/8 25/8 25/8 25/8 215/16 |
СК СК СК СК СФ |
C3 C3 C3 C3 C3 |
43/8 43/8 43/8 43/8 5 |
1/4 1/4 1/4 1/4 1/4 |
7/16 7/16 7/16 7/16 7/16 |
115/16 115/16 115/16 115/16 21/16 |
- - - - 1/8 |
18 19 19 20 25 |
| 2-5В1320-СФ 2-5В1400-СФ 2-5В1500-СФ 2-5В1600-СФ 2-5В1870-СФ |
13.20 14.00 15.00 16.00 18.70 |
13.10 13.90 14.90 15.90 18.60 |
215/16 215/16 215/16 215/16 215/16 |
СФ СФ СФ СФ СФ |
C3 C3 C3 C3 C3 |
5 5 5 5 5 |
1/4 1/4 1/4 1/4 1/4 |
7/16 7/16 7/16 7/16 7/16 |
21/16 21/16 21/16 21/16 21/16 |
1/8 1/8 1/8 1/8 1/8 |
27 28 30 34 49 |
| 2-5В2120-СФ 2-5V2360-E 2-5V2800-E |
21.20 23.60 28.00 |
20.10 23.50 27.90 |
215/16 31/2 31/2 |
СФ E E |
C3 C3 C3 |
5 61/4 61/4 |
1/4 5/8 5/8 |
7/16 1/4 1/4 |
21/16 25/8 25/8 |
1/8 5/16 5/16 |
50 72 80 |

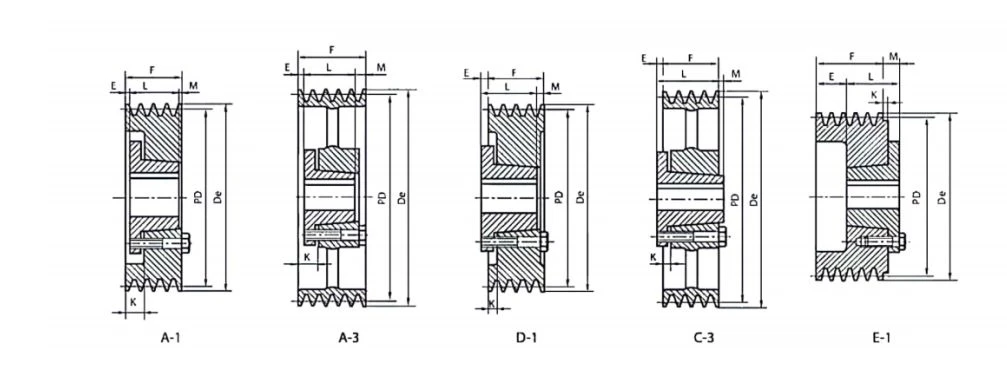

5V-3
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 3-5В440-СДС 3-5В465-СДС 3-5В490-СДС 3-5В520-СДС 3-5В550-СДС |
4.40 4.65 4.90 5.20 5.50 |
4.30 4.55 4.80 5.10 5.40 |
2 2 2 2 2 |
СДС СДС СДС СДС СДС |
E1 E1 A1 A1 A1 |
31/2 31/2 - - - |
15/8 15/8 7/16 7/16 7/16 |
- - 11/16 11/16 11/16 |
13/8 13/8 13/8 13/8 13/8 |
5/8 5/8 9/16 9/16 9/16 |
5.5 6.5 7.0 7.5 8.0 |
| 3-5В590-СДС 3-5В630-СК 3-5В670-СК 3-5В710-СФ 3-5В750-СФ |
5.90 6.30 6.70 7.10 7.50 |
5.80 6.20 6.60 7.00 7.40 |
2 25/8 25/8 215/16 215/16 |
СДС СК СК СФ СФ |
A1 A1 A1 A1 A1 |
- - - - - |
7/16 3/8 3/8 5/16 5/16 |
11/16 11/16 11/16 1 1 |
13/8 115/16 115/16 21/16 21/16 |
9/16 1/16 1/16 - - |
8.5 11.0 11.5 13.0 14.0 |
| 3-5В800-СФ 3-5В850-СФ 3-5В900-СФ 3-5В925-СФ 3-5V975-5F |
8.00 8.50 9.00 9.25 9.75 |
7.90 8.40 8.90 9.15 9.65 |
215/16 215/16 215/16 215/16 215/16 |
СФ СФ СФ СФ СЕ |
A1 A2 A2 A2 A2 |
- 5 5 5 5 |
5/16 5/16 5/16 5/16 5/16 |
1 1 1 1 1 |
21/16 21/16 21/16 21/16 21/16 |
- - - - - |
15.0 16.0 17.0 18.0 19.0 |
| 3-5В1030-СФ 3-5В1090-СФ 3-5В1130-СФ 3-5В1180-СФ 3-5V1250-E |
10.30 10.90 11.30 11.80 12.50 |
10.20 10.80 11.20 11.70 12.40 |
215/16 215/16 215/16 215/16 31/2 |
СФ СФ СФ СФ E |
A2 A2 A3 A3 C3 |
5 5 5 5 61/4 |
5/16 5/16 5/16 5/16 1/8 |
1 1 1 1 3/4 |
21/16 21/16 21/16 21/16 25/8 |
- - - - 1/8 |
22.0 25.0 26.0 28.0 34.0 |
| 3-5V1320-E 3-5V1400-E 3-5V1500-E 3-5V1600-E 3-5V1870-E |
13.20 14.00 15.00 16.00 18.70 |
13.10 13.90 14.90 15.90 18.60 |
31/2 31/2 31/2 31/2 31/2 |
E E E E E |
C3 C3 C3 C3 C3 |
61/4 61/4 61/4 61/4 61/4 |
1/8 1/8 1/8 1/8 1/8 |
3/4 3/4 3/4 3/4 3/4 |
25/8 25/8 25/8 25/8 25/8 |
1/8 1/8 1/8 1/8 1/8 |
38.0 43.0 44.0 46.0 60.0 |
| 3-5V2120-E 3-5V2360-E 3-5V2800-E 3-5V3150-F 3-5V3750-F |
21.20 23.60 28.00 31.50 37.50 |
21.10 23.50 27.90 31.40 37.40 |
31/2 31/2 31/2 315/16 315/16 |
E E E F F |
C3 C3 C3 C3 C3 |
61/4 61/4 61/4 7 7 |
1/8 1/8 1/8 7/16 7/16 |
3/4 3/4 3/4 9/16 9/16 |
25/8 25/8 25/8 35/8 35/8 |
1/8 1/8 1/8 13/16 13/16 |
68.0 80.0 92.0 136 156 |
5V-4
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 4-5В440-СД 4-5В465-СД 4-5В490-СД 4-5В520-СД 4-5В550-СД |
4.40 4.65 4.90 5.20 5.50 |
4.30 4.55 4.80 5.10 5.40 |
2 2 2 2 2 |
СД СД СД СД СД |
E1 E1 A1 A1 A1 |
31/2 31/2 - - - |
17/8 17/8 11/16 11/16 11/16 |
- - 15/16 15/16 15/16 |
113/16 113/16 113/16 113/16 113/16 |
5/8 5/8 9/16 9/16 9/16 |
5.0 6.0 7.0 8.0 9.0 |
| 4-5В590-СД 4-5В630-СК 4-5В670-СК 4-5В710-СФ 4-5В750-СФ |
5.90 6.30 6.70 7.10 7.50 |
5.80 6.20 6.60 7.00 7.40 |
2 25/8 25/8 215/16 215/16 |
СД СК СК СФ СФ |
A1 A1 A1 A1 A1 |
- - - - - |
11/16 5/8 5/8 3/8 3/8 |
15/16 15/16 15/16 11/16 11/16 |
113/16 115/16 115/16 21/16 21/16 |
9/16 1/2 1/2 5/8 5/8 |
10.8 12.0 14.0 15.0 16.0 |
| 4-5V800-E 4-5V850-E 4-5V900-E 4-5V925-E 4-5V975-E |
8.00 8.50 9.00 9.25 9.75 |
7.90 8.40 8.90 9.15 9.65 |
31/2 31/2 31/2 31/2 31/2 |
E E E E E |
B1 B1 B1 B1 B1 |
- - - - - |
9/16 9/16 9/16 9/16 9/16 |
17/16 17/16 17/16 17/16 17/16 |
25/8 25/8 25/8 25/8 25/8 |
1/8 1/8 1/8 1/8 1/8 |
19.0 23.0 25.0 26.0 28.0 |
| 4-5V1030-E 4-5V1090-E 4-5V1130-E 4-5V1180-E 4-5V1250-E |
10.30 10.90 11.30 11.80 12.50 |
10.20 10.80 11.20 11.70 12.40 |
31/2 31/2 31/2 31/2 31/2 |
E E E E E |
B1 B1 B1 B1 B3 |
- - - - 61/4 |
9/16 9/16 9/16 9/16 9/16 |
17/16 17/16 17/16 17/16 17/16 |
25/8 25/8 25/8 25/8 25/8 |
1/8 1/8 1/8 1/8 1/8 |
30.0 39.0 40.0 41.0 43.0 |
| 4-5V1320-E 4-5V 1400-E 4-5V1500-E 4-5V1600-E 4-5V1870-E |
13.20 14.00 15.00 16.00 18.70 |
13.10 13.90 14.90 15.90 18.60 |
31/2 31/2 31/2 31/2 31/2 |
E E E E E |
B3 B3 B3 B3 A3 |
61/4 61/4 61/4 61/4 61/4 |
9/16 9/16 9/16 9/16 3/8 |
17/16 17/16 17/16 17/16 11/4 |
25/8 25/8 25/8 25/8 25/8 |
1/8 1/8 1/8 1/8 1/16 |
45.0 46.0 47.0 49.0 71.0 |
| 4-5V2120-E 4-5V2360-F 4-5V2800-F 4-5V3150-F 4-5V3750-F |
20.20 23.60 28.00 31.50 37.50 |
21.10 23.50 27.90 31.40 37.40 |
31/2 315/16 315/16 315/16 315/16 |
E F F F F |
A3 C3 C3 C3 C3 |
61/4 7 7 7 7 |
3/8 1/8 1/8 1/8 1/8 |
11/4 7/8 7/8 7/8 7/8 |
25/8 35/8 35/8 35/8 35/8 |
1/16 7/16 7/16 7/16 7/16 |
72.0 111 118 147 178 |
| 4-5V5000-J | 50.00 | 49.90 | 41/2 | J | C3 | 73/4 | 1/2 | 11/16 | 41/2 | 15/16 | 266 |

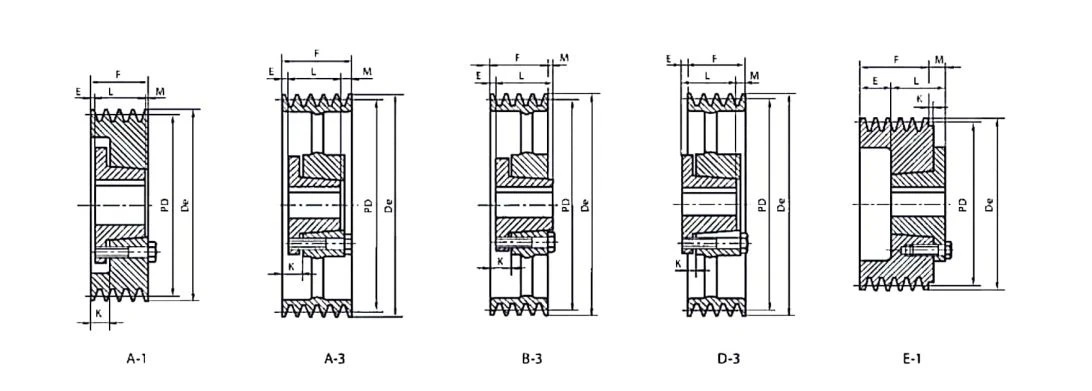

5V-5
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 5-5В440-СД 5-5В465-СД 5-5В490-СД 5-5В520-СД 5-5В550-СД |
4.40 4.65 4.90 5.20 5.50 |
4.30 4.55 4.80 5.10 5.40 |
2 2 2 2 2 |
СД СД СД СД СД |
E1 E1 A1 A1 A1 |
31/2 31/2 - - - |
29/16 29/16 11/16 11/16 11/16 |
- - 15/16 15/16 15/16 |
113/16 113/16 113/16 113/16 113/16 |
5/8 5/8 11/4 11/4 11/4 |
6.0 7.0 8.0 9.0 10 |
| 5-5В590-СК 5-5В630-СК 5-5В670-СФ 5-5V710-5F 5-5В750-СФ |
5.90 6.30 6.70 7.10 7.50 |
5.80 6.20 6.60 7.00 7.40 |
2 25/8 25/8 215/16 215/16 |
СК СК СФ СФ СФ |
A1 A1 A1 A1 A1 |
- - - - - |
5/8 5/8 5/8 11/16 11/16 |
15/16 15/16 15/16 13/8 13/8 |
115/16 115/16 21/16 21/16 21/16 |
13/16 13/16 11/16 1 1 |
11 12 16 14 13 |
| 5-5V800-E 5-5V850-E 5-5V900-E 5-5V925-E 5-5V97S-E |
8.00 8.50 9.00 9.25 9.75 |
7.90 8.40 8.90 9.15 9.65 |
31/2 31/2 31/2 31/2 31/2 |
E E E E E |
A1 A1 A1 A1 АЛ |
- - - - - |
7/8 7/8 7/8 7/8 7/8 |
13/4 13/4 13/4 13/4 13/4 |
25/8 25/8 25/8 25/8 25/8 |
1/4 1/4 1/4 1/4 1/4 |
19 22 26 28 30 |
| 5-5V1030-E 5-5V1090-E 5-5V1130-E 5-5V1180-E 5-5V12S0-E |
10.30 10.90 11.30 11.80 12.50 |
10.20 10.80 11.20 11.70 12.40 |
31/2 31/2 31/2 31/2 31/2 |
E E E E E |
A1 A1 A1 A1 A3 |
- - - - 61/4 |
13/4 13/4 13/4 13/4 13/4 |
13/4 13/4 13/4 13/4 13/4 |
25/8 25/8 25/8 25/8 25/8 |
1/4 1/4 1/4 1/4 1/4 |
33 41 42 44 45 |
| 5-5V1320-E 5-5V1400-E 5-5V1500-E 5-5V1600-E 5-5V1870-F |
13.20 14.00 15.00 16.00 18.70 |
13.10 13.90 14.90 15.90 18.60 |
31/2 31/2 31/2 31/2 31/2 |
E E E E F |
A3 A3 A3 A3 B3 |
61/4 61/4 61/4 61/4 7 |
7/8 7/8 7/8 7/8 5/16 |
13/4 13/4 13/4 13/4 15/16 |
25/8 25/8 25/8 25/8 35/8 |
1/4 1/4 1/4 1/4 3/16 |
46 47 53 56 96 |
| 5-5V2120-F 5-5V2360-F 5-5V2800-F 5-5V3150-J 5-5V3750-J |
21.20 23.60 28.00 31.50 37.50 |
21.10 23.50 27.90 31.40 37.40 |
31/2 315/16 315/16 315/16 315/16 |
F F F J J |
B3 B3 B3 C3 C3 |
7 7 7 73/4 73/4 |
5/16 5/16 5/16 3/16 3/16 |
15/16 15/16 15/16 1 1 |
35/8 35/8 35/8 41/2 41/2 |
3/16 3/16 3/16 9/16 9/16 |
98 120 135 188 224 |
| 5-5V5000-J | 50.00 | 49.90 | 41/2 | J | C3 | 73/4 | 3/16 | - | 41/2 | 9/16 | 308 |
5V-6
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 6-5В440-СД 6-5В465-СД 6-5В490-СД 6-5В520-СД 6-5В550-СД |
4.40 4.65 4.90 5.20 5.50 |
4.30 4.55 4.80 5.10 5.40 |
2 2 2 2 2 |
СД СД СД СД СД |
E1 E1 A1 A1 A1 |
31/2 31/2 - - - |
31/4 31/4 11/16 11/16 11/16 |
- - 15/16 15/16 15/16 |
113/16 113/16 113/16 113/16 113/16 |
5/8 5/8 115/16 115/16 115/16 |
7.0 7.8 9.0 10.8 11.3 |
| 6-5В590-СК 6-5В630-СК 6-5В670-СФ 6-5В710-СФ 6-5В750-СФ |
5.90 6.30 6.70 7.10 7.50 |
5.80 6.20 6.60 7.00 7.40 |
25/8 25/8 215/16 215/16 215/16 |
СК СК СФ СФ СФ |
A1 A1 A1 A1 A1 |
- - - - - |
5/8 5/8 15/16 15/16 15/16 |
15/16 15/16 15/8 15/8 15/8 |
115/16 115/16 21/16 21/16 21/16 |
17/8 17/8 17/16 17/16 17/16 |
12.0 13.0 14.0 15.0 17.0 |
| 6-5V800-E 6-5V850-E 6-5V900-E 6-5V92S-E 6-5V975-E |
8.00 8.50 9.00 9.25 9.75 |
7.90 8.40 8.90 9.15 9.65 |
31/2 31/2 31/2 31/2 31/2 |
E E E E E |
A1 A1 A1 A1 A1 |
- - - - - |
11/8 11/8 11/8 11/8 11/8 |
2 2 2 2 2 |
25/8 25/8 25/8 25/8 25/8 |
11/16 11/16 11/16 11/16 11/16 |
20.0 25.0 28.0 29.0 31.0 |
| 6-5V1030-E 6-5V1090-E 6-5V1130-E 6-5V1180-E 6-5V1250-F |
10.30 10.90 11.30 11.80 12.50 |
10.20 10.80 11.20 11.70 12.40 |
31/2 31/2 31/2 31/2 315/16 |
E E E E F |
A1 A1 A1 A1 B3 |
- - - - 7 |
11/8 11/8 11/8 11/8 11/16 |
2 2 2 2 21/16 |
25/8 25/8 25/8 25/8 35/8 |
11/16 11/16 11/16 11/16 1/4 |
33.0 38.0 41.0 43.0 45.0 |
| 6-5V1320-F 6-5V1400-F 6-5V1500-F 6-5V1600-F 6-5V1870-F |
13.20 14.00 15.00 16.00 18.70 |
13.10 13.90 14.90 15.90 18.60 |
315/16 315/16 315/16 315/16 315/16 |
F F F F F |
B3 B3 B3 B3 A3 |
7 7 7 7 7 |
11/16 11/16 11/16 11/16 5/16 |
21/16 21/16 21/16 21/16 15/16 |
35/8 35/8 35/8 35/8 35/8 |
1/4 1/4 1/4 1/4 1/2 |
48.0 59.0 64.0 68.0 84.0 |
| 6-5V2120-F 6-5V2360-J 6-5V2800-J 6-5V3150-J 6-5V3750-J |
21.20 23.60 28.00 31.50 37.50 |
21.10 23.50 27.90 31.40 37.40 |
315/16 41/2 41/2 41/2 41/2 |
F J J J J |
A3 B3 B3 B3 B3 |
7 73/4 73/4 73/4 73/4 |
5/16 1/8 1/8 1/8 1/8 |
15/16 15/16 15/16 15/16 15/16 |
35/8 41/2 41/2 41/2 41/2 |
1/2 3/16 3/16 3/16 3/16 |
110 148 169 206 241 |
| 6-5V5000-M | 50.00 | 49.90 | 51/2 | M | C3 | 91/2 | 1/8 | 1/2 | 63/4 | 13/8 | 388 |

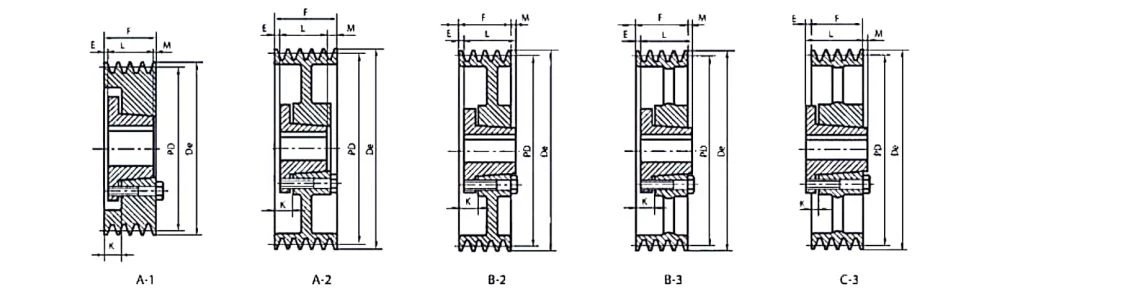

5V-8
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 8-5В710-СФ 8-5В750-СФ 8-5V800-E 8-5V850-E 8-5V900-E |
7.10 7.50 8.00 8.50 9.00 |
7.00 7.40 7.90 8.40 8.90 |
215/16 215/16 31/2 31/2 31/2 |
СФ СФ E E E |
A1 A1 A1 A1 A1 |
- - - - - |
17/16 17/16 15/8 15/8 15/8 |
21/8 21/8 21/2 21/2 21/2 |
21/16 21/16 25/8 25/8 25/8 |
25/16 25/16 19/16 19/16 19/16 |
19 20 25 29 32 |
| 8-5V925-F 8-5V975-F 8-5V1030-F 8-5V1090-F 8-5V1130-F |
9.25 9.75 10.30 10.90 11.30 |
9.15 9.65 10.20 10.80 11.20 |
31/2 315/16 315/16 315/16 315/16 |
F F F F F |
A1 A1 A1 A1 A1 |
- - - - - |
19/16 19/16 19/16 19/16 19/16 |
29/16 29/16 29/16 29/16 29/16 |
35/5 35/8 35/8 35/8 35/8 |
5/8 5/8 5/8 5/8 5/8 |
39 42 52 59 62 |
| 8-5V1180-F 8-5V1250-F 8-5V1320-F 8-5V1400-F 8-5V1500-F |
11.80 12.50 13.20 14.00 15.00 |
11.70 12.40 13.10 13.90 14.90 |
315/16 315/16 315/16 315/16 315/16 |
F F F F F |
A1 A3 A3 A3 A3 |
- 7 7 7 7 |
19/16 19/16 19/16 19/16 19/16 |
29/16 29/16 29/16 29/16 29/16 |
35/8 35/8 35/8 35/8 35/8 |
5/8 5/8 5/8 5/8 5/8 |
64 66 68 70 73 |
| 8-5V1600-F 8-5V1870-J 8-5V2120-J 8-5V2360-J 8-5V2800-J |
16.00 18.70 21.20 23.60 28.00 |
15.90 18.60 21.10 23.50 27.90 |
315/16 41/2 41/2 41/2 41/2 |
F J J J J |
A1 A3 A3 A3 A3 |
7 73/4 73/4 73/4 73/4 |
19/16 3/8 3/8 3/8 3/8 |
19/16 19/16 19/16 19/16 19/16 |
35/8 41/2 41/2 41/2 41/2 |
5/8 15/16 15/16 15/16 15/16 |
89 132 150 162 191 |
| 8-5V3150-M 8-5V3750-M 8-5V5000-M |
31.50 37.50 50.00 |
31.40 37.40 49.90 |
51/2 51/2 51/2 |
M M M |
B3 B3 B3 |
91/2 91/2 91/2 |
1/2 1/2 1/2 |
115/16 115/16 115/16 |
63/4 63/4 63/4 |
17/16 17/16 17/16 |
298 319 497 |
5V-10
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 10-5V800-E 10-5V850-E 10-5V900-F 10-5V925-F 10-5V975-F |
8.00 8.50 9.00 9.25 9.75 |
7.90 8.40 8.90 9.15 9.65 |
31/2 31/2 315/16 315/16 315/16 |
E E F F F |
A1 A1 A1 A1 A1 |
- - - - - |
23/8 23/8 25/16 25/16 25/16 |
31/4 31/4 35/16 35/16 35/16 |
25/8 25/8 35/8 35/8 35/8 |
23/16 23/16 11/4 11/4 11/4 |
27 32 41 47 58 |
| 10-5V1030-F 10-5V1090-F 10-5V1130-F 10-5V1180-F 10-5V1250-J |
10.30 10.90 11.30 11.80 12.50 |
10.20 10.80 11.20 11.70 12.40 |
315/16 315/16 315/16 315/16 41/2 |
F F F F J |
A1 A1 A1 A1 A1 |
- - - - - |
25/16 25/16 25/16 25/16 23/8 |
35/16 35/16 35/16 35/16 39/16 |
35/8 35/8 35/8 35/8 41/2 |
11/4 11/4 11/4 11/4 5/16 |
66 75 79 80 82 |
| 10-5V1320-J 10-5V1400-J 10-5V1500-J 10-5V1600-J 10-5V1870-J |
13.20 14.00 15.00 16.00 18.70 |
13.10 13.90 14.90 15.90 18.60 |
41/2 41/2 41/2 41/2 41/2 |
J J J J J |
A1 A2 A2 A2 A3 |
- 73/4 73/4 - 73/4 |
23/8 23/8 23/8 23/8 3/8 |
39/16 39/16 39/16 39/16 19/16 |
41/2 41/2 41/2 41/2 41/2 |
5/16 5/16 5/16 5/16 23/16 |
85 90 92 102 150 |
| 10-5V2120-J 10-5V2360-M 10-5V2800-M 10-5V3150-M 10-5V3750-M |
21.20 23.60 28.00 31.50 37.50 |
21.10 23.50 27.90 31.40 37.40 |
41/2 41/2 51/2 51/2 51/2 |
J M M M M |
A3 B3 B3 B3 B3 |
73/4 91/2 91/2 91/2 91/2 |
3/8 1/2 1/2 1/2 1/2 |
19/16 115/16 115/16 115/16 115/16 |
41/2 63/4 63/4 63/4 63/4 |
23/16 1/16 1/16 1/16 1/16 |
164 258 278 318 340 |
| 10-5V5000-M | 50.00 | 49.90 | 51/2 | M | B3 | 91/2 | 1/2 | 115/16 | 63/4 | 1/16 | 538 |
8V-4,8V-5
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 4-8V1250-F 4-8V1320-F 4-8V1400-F 4-8V1500-F 4-8V1600-F |
12.50 13.20 14.00 15.00 16.00 |
12.30 13.00 13.80 14.80 15.80 |
315/16 315/16 315/16 315/16 315/16 |
F F F F F |
A1 A2 A2 A2 A2 |
- 7 7 7 7 |
3/16 3/16 3/16 3/16 3/16 |
13/16 13/16 13/16 13/16 13/16 |
35/8 35/8 35/8 35/8 35/8 |
11/16 11/16 11/16 11/16 11/16 |
63 66 70 74 82 |
| 4-8V1700-F 4-8V1800-F 4-8V1900-F 4-8V2000-J 4-8V2120-J |
17.00 18.00 19.00 20.00 21.20 |
16.80 17.80 18.80 19.80 21.00 |
315/16 315/16 315/16 41/2 41/2 |
F F F J J |
A3 A3 A3 A3 A3 |
7 7 7 73/4 73/4 |
3/16 3/16 3/16 1/4 1/4 |
13/16 13/16 13/16 17/16 17/16 |
35/8 35/8 35/8 41/2 41/2 |
11/16 11/16 11/16 1/8 1/8 |
94 99 105 141 150 |
| 4-8V2240-J 4-8V2480-M 4-8V3000-M 4-8V3550-M 4-8V4000-M |
22.40 24.80 30.00 35.50 40.00 |
22.20 24.60 29.80 35.30 39.80 |
41/2 51/2 51/2 51/2 51/2 |
J M M M M |
A3 C3 C3 C3 C3 |
73/4 91/2 91/2 91/2 91/2 |
1/4 5/8 5/8 5/8 5/8 |
17/16 13/16 13/16 13/16 13/16 |
41/2 63/4 63/4 63/4 63/4 |
1/8 11/4 11/4 11/4 11/4 |
177 223 285 305 355 |
| 4-8V4450-M 4-8V5300-M |
44.50 53.00 |
44.30 52.80 |
51/2 51/2 |
M M |
C3 C3 |
91/2 91/2 |
5/8 3/8 |
13/16 13/16 |
63/4 63/4 |
11/4 11/4 |
369 478 |
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 5-8V1250-F 5-8V1320-F 5-8V1400-F 5-8V1500-F 5-8V1600-F |
12.50 13.20 14.00 15.00 16.00 |
12.30 13.00 13.80 14.80 15.80 |
315/16 315/16 315/16 315/16 315/16 |
F F F F F |
A1 A2 A2 A2 A2 |
- 7 7 7 7 |
15/16 15/16 15/16 15/16 15/16 |
25/16 25/16 25/16 25/16 25/16 |
35/8 35/8 35/8 35/8 35/8 |
11/16 11/16 11/16 11/16 11/16 |
68 75 78 94 101 |
| 5-8V1700-J 5-8V1800-J 5-8V1900-J 5-8V2000-J 5-8V2120-J |
17.00 18.00 19.00 20.00 21.20 |
16.80 17.80 18.80 19.80 21.00 |
41/2 41/2 41/2 41/2 41/2 |
J J J J J |
A3 A3 A3 A3 A3 |
73/4 73/4 73/4 73/4 73/4 |
13/16 13/16 13/16 13/16 13/16 |
2 2 2 2 2 |
41/2 41/2 41/2 41/2 41/2 |
11/16 11/16 11/16 11/16 11/16 |
111 130 135 152 183 |
| 5-8V2240-M 5-8V2480-M 5-8V3000-M 5-8V3550-M 5-8V4000-M |
22.40 24.80 30.00 35.50 40.00 |
22.20 24.60 29.80 35.30 39.80 |
51/2 51/2 51/2 51/2 51/2 |
M M M M M |
B3 B3 B3 B3 B3 |
91/2 91/2 91/2 91/2 91/2 |
1/2 1/2 1/2 1/2 1/2 |
115/16 115/16 115/16 115/16 115/16 |
63/4 63/4 63/4 63/4 63/4 |
11/4 11/4 11/4 11/4 11/4 |
223 254 294 325 430 |
| 5-8V4450-N 5-8V5300-N |
44.50 53.00 |
44.30 52.80 |
6 6 |
N N |
C3 C3 |
101/2 101/2 |
13/16 13/16 |
15/16 15/16 |
81/8 81/8 |
15/16 15/16 |
485 672 |
8V-6,8V-8
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 6-8V1250-F 6-8V1320-F 6-8V1400-F 6-8V1500-J 6-8V1600-J |
12.50 13.20 14.00 15.00 16.00 |
12.30 13.00 13.80 14.80 15.80 |
315/16 315/16 315/16 41/2 41/2 |
F F F J J |
A1 A1 A1 A1 A1 |
- - - - - |
15/16 15/16 15/16 13/8 13/8 |
25/16 25/16 25/16 29/16 29/16 |
35/8 35/8 35/8 41/2 41/2 |
23/16 23/16 23/16 11/4 11/4 |
86 94 108 138 142 |
| 6-8V1700-J 6-8V1800-J 6-8V1900-J 6-8V2000-M 6-8V2120-M |
17.00 18.00 19.00 20.00 21.20 |
16.80 17.80 18.80 19.80 21.00 |
41/2 41/2 41/2 51/2 51/2 |
J J J M M |
A2 A2 A2 B2 B2 |
73/4 73/4 73/4 91/2 91/2 |
13/8 13/8 13/8 11/2 11/2 |
29/16 29/16 29/16 215/16 215/16 |
41/2 41/2 41/2 63/4 63/4 |
11/4 11/4 11/4 11/8 11/8 |
144 160 172 204 226 |
| 6-8V2240-M 6-8V2480-M 6-8V3000-M 6-8V3550-N 6-8V4000-N |
22.40 24.80 30.00 35.50 40.00 |
22.20 24.60 29.80 35.30 39.80 |
51/2 51/2 51/2 6 6 |
M M M N N |
B3 B3 B3 C3 C3 |
91/2 91/2 91/2 101/2 101/2 |
11/2 1/2 1/2 5/8 5/8 |
215/16 115/16 115/16 11/8 11/8 |
63/4 63/4 63/4 81/8 81/8 |
11/8 1/8 1/8 3/8 3/8 |
235 246 306 466 548 |
| 6-8V4450-N 6-8V5300-N 6-8V6300-P 6-8V7100-P |
44.50 53.00 63.00 71.00 |
44.30 52.80 62.80 70.80 |
6 6 63/4 63/4 |
N N P P |
C3 C3 C3 C3 |
101/2 101/2 121/4 121/4 |
5/8 5/8 - 5/8 |
11/8 11/8 2 25/8 |
81/8 81/8 93/8 93/8 |
3/8 3/8 17/8 21/2 |
590 658 860 1272 |
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 8-8V1250-J 8-8V1320-J 8-8V1400-J 8-8V1500-J 8-8V1600-J |
12.50 13.20 14.00 15.00 16.00 |
12.30 13.00 13.80 14.80 15.80 |
41/2 41/2 41/2 41/2 41/2 |
J J J J J |
A1 A1 A1 A1 A1 |
- - - - - |
23/8 23/8 23/8 23/8 23/8 |
39/16 39/16 39/16 39/16 39/16 |
41/2 41/2 41/2 41/2 41/2 |
21/2 21/2 21/2 21/2 21/2 |
108 118 131 151 155 |
| 8-8V1700-M 8-8V1800-M 8-8V1900-M 8-8V2000-M 8-8V2120-M |
17.00 18.00 19.00 20.00 21.20 |
16.80 17.80 18.80 19.80 21.00 |
51/2 51/2 51/2 51/2 51/2 |
M M M M M |
A2 A2 A2 A2 A2 |
91/2 91/2 91/2 91/2 91/2 |
21/2 21/2 21/2 21/2 21/2 |
315/16 315/16 315/16 315/16 315/16 |
63/4 63/4 63/4 63/4 63/4 |
1/8 1/8 1/8 1/8 1/8 |
188 202 221 236 267 |
| 8-8V2240-M 8-8V2480-N 8-8V3000-N 8-8V3550-N 8-8V4000-N |
22.40 24.80 30.00 35.50 40.00 |
22.20 24.60 29.80 35.30 39.80 |
51/2 6 6 6 6 |
M N N N N |
A3 A3 A3 A3 A3 |
91/2 101/2 101/2 101/2 101/2 |
21/2 1/2 1/2 1/2 1/2 |
315/16 21/4 21/4 21/4 21/4 |
63/4 81/8 81/8 81/8 81/8 |
1/8 3/4 3/4 3/4 3/4 |
284 418 447 553 648 |
| 8-8V4450-P 8-8V5300-P 8-8V6300-P 8-8V7100-W |
44.50 53.00 63.00 71.00 |
44.30 52.80 62.80 70.80 |
63/4 63/4 63/4 81/2 |
P P P w |
B3 B3 B3 C3 |
121/4 121/4 121/4 16 |
5/8 5/8 5/8 7/8 |
25/8 25/8 25/8 13/8 |
93/8 93/8 93/8 113/8 |
5/8 5/8 5/8 3/4 |
679 946 1372 1680 |
8V-10,8V-12
| Схеаве | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 10-8V1250-J 10-8V1320-J 10-8V1400-J 10-8V1500-M 10-8V1600-M |
12.50 13.20 14.00 15.00 16.00 |
12.30 13.00 13.80 14.80 15.80 |
41/2 41/2 41/2 51/2 51/2 |
J J J M M |
A1 A1 A1 A1 A1 |
- - - - - |
23/8 23/8 23/8 21/2 21/2 |
39/16 39/16 39/16 315/16 315/16 |
41/2 41/2 41/2 63/4 63/4 |
43/4 43/4 43/4 23/8 23/8 |
122 140 152 212 219 |
| 10-8V1700-M 10-8V1800-M 10-8V1900-M 10-8V2000-M 10-8V2120-M |
17.00 18.00 19.00 20.00 21.20 |
16.80 17.80 18.80 19.80 21.00 |
51/2 51/2 51/2 51/2 51/2 |
M M M M M |
A2 A2 A2 A2 A2 |
91/2 91/2 91/2 91/2 91/2 |
21/2 21/2 21/2 21/2 21/2 |
315/16 315/16 315/16 315/16 315/16 |
63/4 63/4 63/4 63/4 63/4 |
23/8 23/8 23/8 23/8 23/8 |
228 236 260 280 298 |
| 10-8V2240-N 10-8V2480-N 10-8V3000-N 10-8V3550-P 10-8V4000-P |
22.40 24.80 30.00 35.50 40.00 |
22.20 24.60 29.80 35.30 39.80 |
6 6 6 63/4 63/4 |
N N N P P |
A2 A2 A3 A3 A3 |
101/2 101/2 101/2 121/4 121/4 |
1/2 1/2 1/2 5/8 5/8 |
21/4 21/4 21/4 25/8 25/8 |
81/8 81/8 81/8 93/8 93/8 |
3 3 3 15/8 15/8 |
366 454 468 784 826 |
| 10-8V4450-P 10-8V5300-P 10-8V6300-W 10-8V7100-W |
44.50 53.00 63.00 71.00 |
44.30 52.80 62.80 70.80 |
63/4 63/4 81/2 81/2 |
P P w w |
A3 A3 A3 A3 |
121/4 121/4 16 16 |
5/8 5/8 5/8 5/8 |
25/8 25/8 27/8 27/8 |
93/8 93/8 113/8 113/8 |
15/8 1/4 - - |
996 1010 1443 1842 |
| СХЕАВЕ | Де | Дп | Буш Макс Боре | Бусх | Тип | Дб | E | K | L | M | ВТ Лесс Бусх |
| 12-8V1250-M 12-8V1320-M 12-8V1400-M 12-8V1500-M 12-8V1600-M |
12.50 13.20 14.00 15.00 16.00 |
12.30 13.00 13.80 14.80 15.80 |
51/2 51/2 51/2 51/2 51/2 |
M M M M M |
A1 A1 A1 A1 A1 |
- - - - - |
21/2 21/2 21/2 21/2 21/2 |
315/16 315/16 315/16 315/16 315/16 |
63/4 63/4 63/4 63/4 63/4 |
45/8 45/8 45/8 45/8 45/8 |
161 185 211 234 285 |
| 12-8V1700-M 12-8V1800-M 12-8V1900-N 12-8V2000-N 12-8V2120-N |
17.00 18.00 19.00 20.00 21.20 |
16.8 17.80 18.80 19.80 21.00 |
51/2 51/2 6 6 6 |
M M N N N |
A1 A2 A2 A2 A2 |
- - 101/2 101/2 101/2 |
21/2 21/2 1/2 1/2 1/2 |
315/16 315/16 21/4 21/4 21/4 |
63/4 63/4 81/8 81/8 81/8 |
45/8 45/8 51/4 51/4 51/4 |
324 330 338 365 387 |
| 12-8V2240-N 12-8V2480-N 12-8V3000-P 12-8V3550-P 12-8V4000-P |
22.40 24.80 30.00 35.50 40.00 |
22.20 24.60 29.80 35.30 39.80 |
6 6 63/4 63/4 63/4 |
N N P P P |
A2 A2 A3 A3 A3 |
101/2 101/2 121/2 121/4 121/4 |
1/2 1/2 5/8 5/8 5/8 |
21/4 21/4 25/8 25/8 25/8 |
81/8 81/8 93/8 93/8 93/8 |
51/4 51/4 37/8 37/8 37/8 |
399 454 605 706 766 |
| 12-8V4450-P 12-8V5300-W 12-8V6300-W 12-8V7100-W |
44.50 53.00 63.00 71.00 |
44.30 52.80 62.80 70.80 |
63/4 81/2 81/2 81/2 |
P W W W |
A3 A3 A3 A3 |
121/4 16 16 16 |
5/8 5/8 5/8 5/8 |
25/8 27/8 27/8 27/8 |
93/8 113/8 113/8 113/8 |
37/8 21/4 21/4 21/4 |
910 1333 1777 2002 |
Popularne oznake: ктл 3в-5в-8в в-ременице, Кина ктл 3в-5в-8в в-ременице произвођачи, добављачи, фабрика
